| Brand Name : | YUESHUN |
| Model Number : | JS22H-11E |
| Certification : | CE RoHS |
| Price : | Negotiable |
| Payment Terms : | T/T to our company account or by paypal |
| Supply Ability : | 5000Pcs/Day |
| Delivery Time : | 3-7 work days |

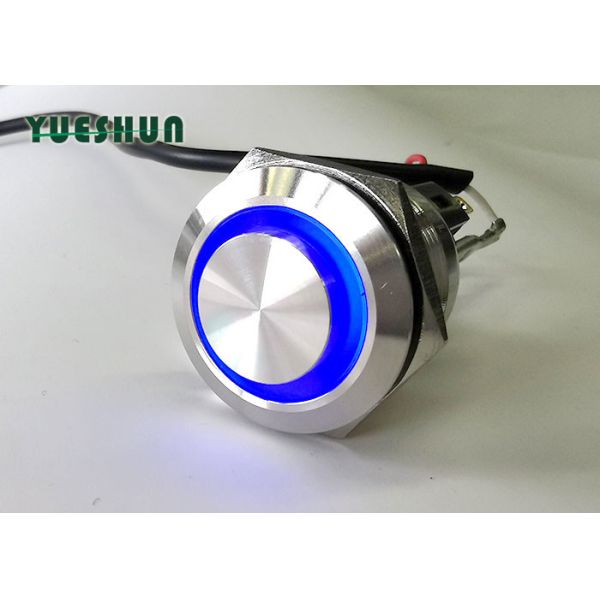

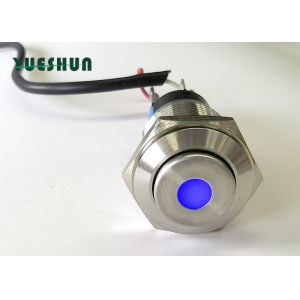

Metal High Round Head Push Button Switch LED Illuminated waterproof momentary 22mm push button
- We get CE and Rohs for all our push button switches. Our factory
are focused on manufacturing pushbutton switches and indicator. We
ensure you 2-year warranty. The products are applied for all kinds
of power switch, outdoo appliaces, wet environment equipments.
- The illuminated pushbutton swithes are High-grade appearance and
nice touch feeling, which is made of 304 stainless steel. If you
need other materials please feel free to contact us.
- Protection Degree: IP67, IK08. Waterproof Protection Can be Used
in Wet or Dusty Environment.
Product Attribute
| Mounting hole Diameter | 22mm | Mounting Panel Thickness | Momentary 1-8mm Latching 1-13mm |
| Max.Switch Rating | 5A / 250V AC | Protection Level | IP67 |
| Operation type | Momentary Latching | Contact Configuration | 1NO + 1NC 2NO + 2NC |
| Body Material | Stainless steel | Operation Distance | About 3.1 mm |
| LED | LED Color | Red,Green,Yellow,Orange,Blue,White,Purple or Double color mixing Can be customized. | |
| Led Voltage | 3V 6V 12V 24V 36V 110V 220V are available. | ||
| LED Type | Ring Symbol | ||
|
